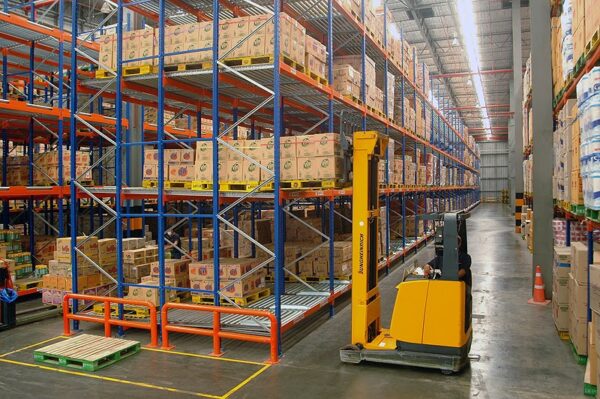

‘SSI SCHAEFER’ Double Deep Pallet Racking

A derivative to the Selective pallet racking, the Double Deep system requires the use of a specialist reach truck or an attachment fitted to reach truck. Whilst achieving increases in capacity of up to 30% above the former, only 50% of the pallets are immediately accessible.

This system however provides an excellent method of increasing warehouse capacity or when alternative systems such as the Drive-in which require high numbers of homogenous pallet types, are not possible.

Enquiry
Category:
Description

Description

Facts about Double Deep Pallet Racking Systems

  • Lower beam level required for some types types of equipment
  • Operates up to height of 10m
  • Average stock rotation
  • Average order picking, 50% selectivity
  • Average floor area utilization
  • 40% net pallet area usage of overall warehouse area
  • Redundancy rates can run between 10-20% dependant on the quality of the WMS programme
  • Popular against Drive-in Racking, as a lower cost alternative which increase capacity over selective by up to 30%
  • Recommend the use of pallet rails or pallet support bars above 4m, to increase MH production and improve safety of the operation.
  • Recommend to use column protectors when using MH equipment that requires the straddle  leg to go below beam or between pallet and upright
  • Mechanical Handling Equipment
  1. Specialist machine with either pantograph or telescopic forks, or using a purpose designed attachment, which can be fitted to standard reach trucks.
